EVK1 - VGA - Product brief

EVK1 - VGA - Product brief

Product references: PEK3MVCD

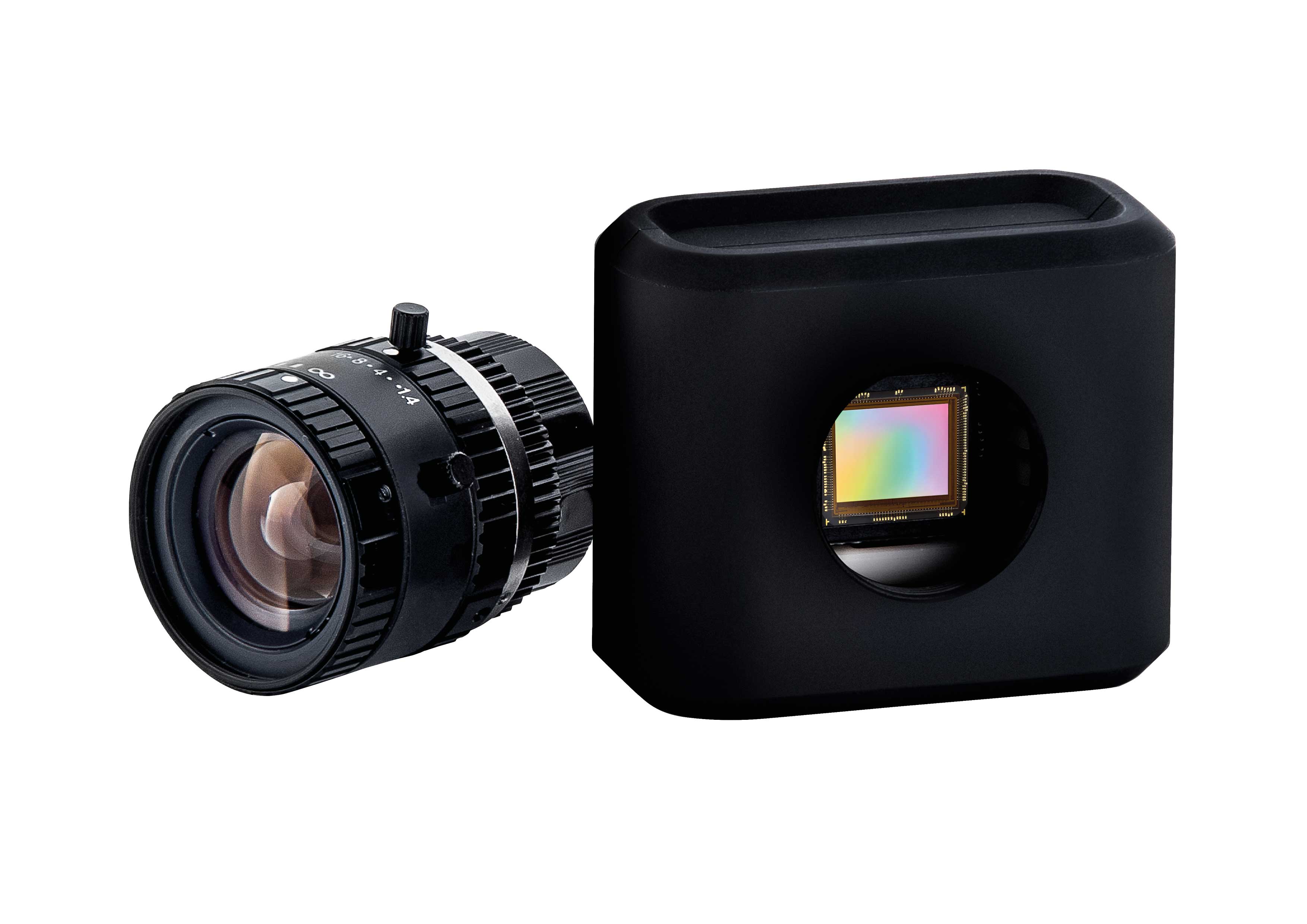

Prophesee's evaluation kits (EVK 1) provide all the support for real-time viewing and recording of events stream captured by our sensors.

The system is responsible for data sampling, time stamping and data packing for transmission of the sensor events over a USB 3.0 interface.
Prophesee software allows real-time event stream visualization and sensor data recording. It also features analysis and playback functions, and frame video generation tools.


  • VGA pixel-individually auto-sampling image sensor
  • Wide Dynamic Range (up to 120dB)
  • Contrast Detection (CD) events only
  • Lens D-FOV 70° (C/CS mount)
  • Power supply and data exchange with standard USB 3.0 interface
  • Event time-stamping with microsecond (µs) precision

For more informations, see EVK1- VGA - Camera manual
